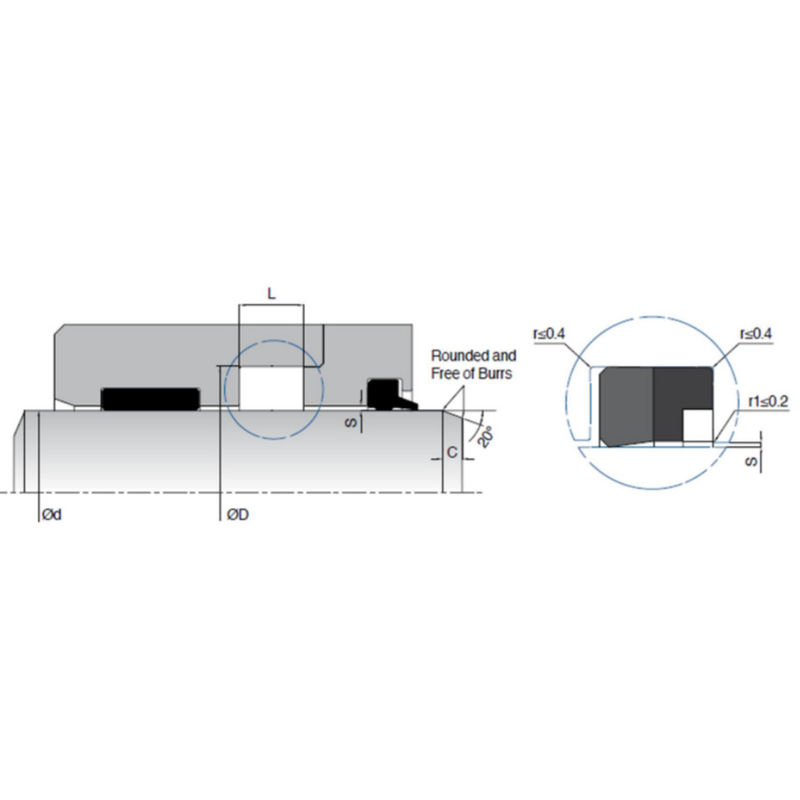

	d (f8)	D (H9)	L (+0,2/-0)	C	Material
KL11-006	6	14	6.5	5	NBR
KL11-012	12	23	7.5	5	NBR
KL11-015	15	27	7	5	NBR
KL11-016	16	28	7.5	5	NBR
KL11-016/1	16	24	7	5	NBR
KL11-018	18	26	6.4	5	NBR
KL11-018/1	18	28	6.3	5	NBR
KL11-018/2	18	30	7.5	5	NBR
KL11-020	20	30	8	5	NBR
KL11-020/1	20	27	6	5	NBR
KL11-020/2	20	28	6.3	5	NBR
KL11-020/3	20	28	7	5	NBR
KL11-020/4	20	30	8.5	5	NBR
KL11-020/5	20	28	5.6	5	NBR
KL11-022	22	32	7.5	5	NBR
KL11-022/1	22	29	5	5	NBR
KL11-022/2	22	30	7	5	NBR
KL11-022/3	22	32	10	5	NBR
KL11-022/4	22	34	9.5	5	NBR
KL11-022/5	22	35	10	5	NBR
KL11-025	25	38	9.5	5	NBR
KL11-025/1	25	33	6	5	NBR
KL11-025/2	25	35	8	5	NBR
KL11-025/3	25	33	6.4	5	NBR
KL11-025/4	25	35	9	5	NBR
KL11-025/5	25	38	10	5	NBR
KL11-025/6	25.4	38.1	10	5	NBR
KL11-025/7	25	33	7	5	NBR
KL11-028	28	38	8	5	NBR
KL11-028/1	28	41	9.5	5	NBR
KL11-028/2	28	36	6.4	5	NBR
KL11-028/3	28	40	9.5	5	NBR
KL11-028/4	28	41	10	5	NBR
KL11-028/5	28.57	39.68	9.5	5	NBR
KL11-030	30	40	10.5	5	NBR
KL11-030/1	30	38	6.5	5	NBR
KL11-030/2	30	40	7	5	NBR
KL11-030/3	30	40	7.5	5	NBR
KL11-030/4	30	45	9	5	NBR
KL11-030/5	30	50	14.5	5	NBR
KL11-031	31.75	47.62	11.7	5	NBR
KL11-032	32	40	9	5	NBR
KL11-032/1	32	42	11	5	NBR
KL11-032/2	32	45	10	5	NBR
KL11-032/3	32	40	5	5	NBR
KL11-032/4	32	40	8.5	5	NBR
KL11-034	34.92	50.8	8.6	5	NBR
KL11-035	35	45	10.5	5	NBR
KL11-035/1	35	50	10.5	5	NBR
KL11-035/2	35	45	10	5	NBR
KL11-035/3	35	50	11.5	5	NBR
KL11-035/4	35	43	6	5	NBR
KL11-036	36	43	6.5	5	NBR
KL11-036/1	36	44	6.4	5	NBR
KL11-036/2	36	46	8.5	5	NBR
KL11-036/3	36	48	12	5	NBR
KL11-036/4	36	48	9.5	5	NBR
KL11-038	38	55	10.5	5	NBR
KL11-038/1	38.1	50.8	10	5	NBR
KL11-038/2	38.1	53.97	10.5	5	NBR
KL11-040	40	50	10.5	5	NBR
KL11-040/1	40	55	10.5	5	NBR
KL11-040/2	40	50	11	5	NBR
KL11-040/3	40	48	6.5	5	NBR
KL11-040/4	40	55	11	5	NBR
KL11-040/5	40	50	10	5	NBR
KL11-040/6	40	50	8	5	NBR
KL11-040/7	40	55	8	5	NBR
KL11-040/8	40	60	14.5	5	NBR
KL11-040/9	40	52	12	5	NBR
KL11-042	42	52	9	5	NBR
KL11-044	44.5	53.97	7	5	NBR
KL11-044/1	44.5	53.97	7.5	5	NBR
KL11-044/2	44.5	60.32	11.7	5	NBR
KL11-045	45	55	10.5	5	NBR
KL11-045/1	45	60	10.5	5	NBR
KL11-045/2	45	55	11	5	NBR
KL11-045/3	45	55	8	5	NBR
KL11-045/4	45	55	7.5	5	NBR
KL11-045/5	45	57	10	5	NBR
KL11-045/6	45	65	14.5	5	NBR
KL11-045/7	45	53	8.5	5	NBR
KL11-045/8	45	60	10	5	NBR
KL11-050	50	65	10.5	5	NBR
KL11-050/1	50	62	10	5	NBR
KL11-050/2	50	60	10.5	5	NBR
KL11-050/3	50	60	10	5	NBR
KL11-050/4	50	65	11	5	NBR
KL11-050/5	50	62	8	5	NBR
KL11-050/6	50	70	14	5	NBR
KL11-050/7	50	60	7.5	5	NBR
KL11-050/8	50	60	8	5	NBR
KL11-050/9	50	70	14.5	5	NBR
KL11-050/10	50	63	12	5	NBR
KL11-054	54	66	9.5	5	NBR
KL11-055	55	65	10.5	5	NBR
KL11-055/1	55	65	12	5	NBR
KL11-055/2	55	65	11	5	NBR
KL11-055/3	55	75	14	5	NBR
KL11-055/4	55	65	8	5	NBR
KL11-055/5	55	70	10.5	5	NBR
KL11-055/6	55	75	14.5	5	NBR
KL11-056	56	66	10.5	5	NBR
KL11-056/1	56	71	10.5	5	NBR
KL11-056/2	56	76	14.5	5	NBR
KL11-057	57.15	69.85	10	5	NBR
KL11-060	60	70	10.5	5	NBR
KL11-060/1	60	70	12.5	5	NBR
KL11-060/2	60	80	14	5	NBR
KL11-060/3	60	75	13	5	NBR
KL11-060/4	60	75	12.5	5	NBR
KL11-060/5	60	69	7	5	NBR
KL11-060/6	60	70	11	5	NBR
KL11-060/7	60	70	8	5	NBR
KL11-060/8	60	70	13	5	NBR
KL11-060/9	60	72	10	5	NBR
KL11-060/11	60	80	14.5	5	NBR
KL11-060/12	60	75	8	5	NBR
KL11-063	63	71	9	5	NBR
KL11-063/1	63	75	11	5	NBR
KL11-063/2	63	78	12.5	5	NBR
KL11-063/3	63	83	14.5	5	NBR
KL11-063/4	63.5	82.55	14.5	5	NBR
KL11-063/5	63.5	76.2	8.5	5	NBR
KL11-063/6	63.5	77.78	11.6	5	NBR
KL11-065	65	80	12.5	5	NBR
KL11-065/1	65	75	12.5	5	NBR
KL11-065/2	65	75	13.5	5	NBR
KL11-065/3	65	77	9.6	5	NBR
KL11-065/4	65	80	11.5	5	NBR
KL11-070	70	80	12.5	5	NBR
KL11-070/1	70	85	12	5	NBR
KL11-070/2	70	85	12.5	5	NBR
KL11-070/3	70	90	14	5	NBR
KL11-070/4	70	80	8	5	NBR
KL11-070/5	70	80	13	5	NBR
KL11-070/6	70	82	10.5	5	NBR
KL11-070/7	70	84	12.5	5	NBR
KL11-070/8	70	90	12	5	NBR
KL11-075	75	85	12.5	5	NBR
KL11-075/1	75	90	11	5	NBR
KL11-075/2	75	85	11	5	NBR
KL11-075/3	75	90	11.5	5	NBR
KL11-075/4	75	90	12.8	5	NBR
KL11-075/5	75	95	14.5	5	NBR
KL11-075/6	75	88	12.5	5	NBR
KL11-075/7	75	90	8	5	NBR
KL11-080	80	90	12.5	5	NBR
KL11-080/1	80	100	12.5	5	NBR
KL11-080/2	80	100	14	5	NBR
KL11-080/3	80	95	12	5	NBR
KL11-080/4	80	93	14.5	5	NBR
KL11-080/5	80	96	10.5	5	NBR
KL11-080/6	80	100	12	5	NBR
KL11-080/7	80	100	14.5	5	NBR
KL11-080/8	80	95	10	5	NBR
KL11-085	85	100	12.5	5	NBR
KL11-085/1	85	95	8	5	NBR
KL11-085/2	85	100	12	5	NBR
KL11-085/3	85	105	14.5	5	NBR
KL11-088	88.9	114.3	19.7	5	NBR
KL11-090	90	105	12.5	5	NBR
KL11-090/1	90	110	12.5	5	NBR
KL11-090/2	90	105	9.5	5	NBR
KL11-090/4	90	106.2	11	5	NBR
KL11-095	95	105	11	5	NBR
KL11-095/1	95	112	12	5	NBR
KL11-095/2	95	115	14.5	5	NBR
KL11-095/3	95	110	12	5	NBR
KL11-095/4	95	115	12	5	NBR
KL11-095/5	95	107	12.5	5	NBR
KL11-100	100	115	12.5	7	NBR
KL11-100/1	100	120	14	7	NBR
KL11-100/2	100	125	20	7	NBR
KL11-100/3	100	120	24.5	7	NBR
KL11-100/4	100	115	11.5	7	NBR
KL11-100/5	100	120	12	7	NBR
KL11-100/6	100	120	14.5	7	NBR
KL11-100/7	100	113	13.5	7	NBR
KL11-105	105	115	11	7	NBR
KL11-105/1	105	125	12.5	7	NBR
KL11-110	110	130	12.5	7	NBR
KL11-110/1	110	125	12	7	NBR
KL11-110/2	110	135	15.5	7	NBR
KL11-115	115	135	16	7	NBR
KL11-120	120	130	10.5	7	NBR
KL11-120/1	120	132.7	10	7	NBR
KL11-120/2	120	135	12.5	7	NBR
KL11-120/3	120	140	12.5	7	NBR
KL11-120/4	120	145	18.8	7	NBR
KL11-125	125	150	14	7	NBR
KL11-125/1	125	150	14.5	7	NBR
KL11-130	130	145	13	7	NBR
KL11-130/1	130	145	15	7	NBR
KL11-130/2	130	150	16	7	NBR
KL11-135	135	150	14	7	NBR
KL11-135/1	135	160	14	7	NBR
KL11-140	140	160	12	7	NBR
KL11-140/1	140	155	13	7	NBR
KL11-140/2	140	160	14.5	7	NBR
KL11-140/3	140	160	12.5	7	NBR
KL11-140/4	140	170	22.8	7	NBR
KL11-145	145	157.7	10	7	NBR
KL11-150	150	170	14	7	NBR
KL11-150/1	150	170	14.5	7	NBR
KL11-160	160	175	16	7	NBR
KL11-160/1	160	180	14.5	7	NBR
KL11-175	175	200	23	7	NBR
KL11-180	180	200	14.5	7	NBR
KL11-180/1	180	210	20.5	7	NBR
KL11-190	190	210	14.5	7	NBR
KL11-198	198	208	12	7	NBR
KL11-200	200	220	14.5	10	NBR
KL11-210	210	240	22.5	10	NBR
KL11-220	220	250	20.5	10	NBR
KL11-230	230	260	20.5	10	NBR

KL11 vedações de vara de acção única vedações de vara de cilindro hidráulico para máquinas móveis

CL11 Selo de vara de acção única

Soluções hidráulicas de vara de acção única

Fechaduras hidráulicas de barras de cilindros

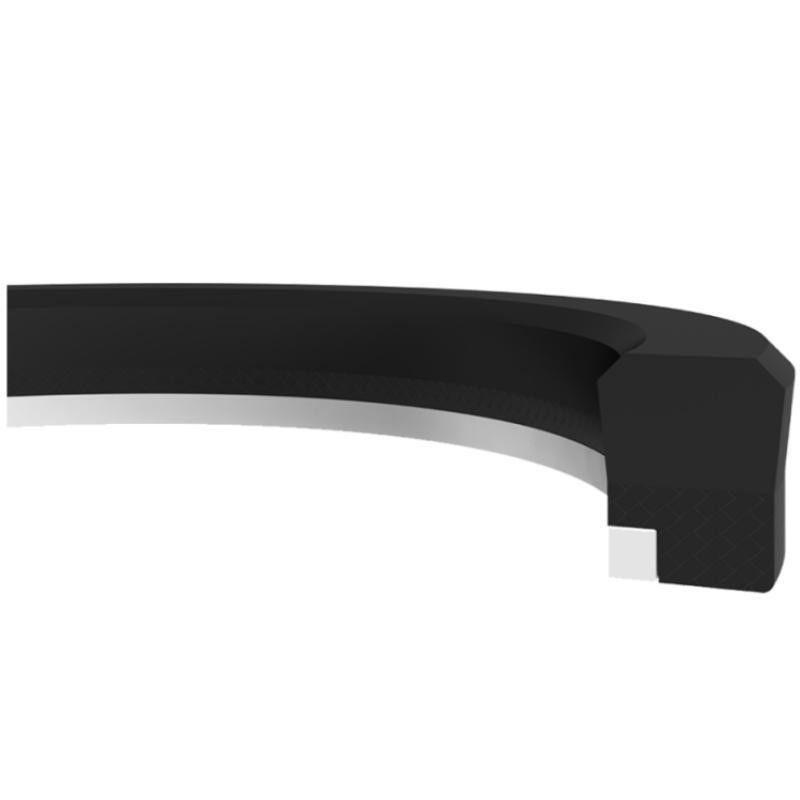

A vedação de barra hidráulica de ação única KL11 consiste num anel de elastómeros de tecido e num anel de extrusão termoplástico.
